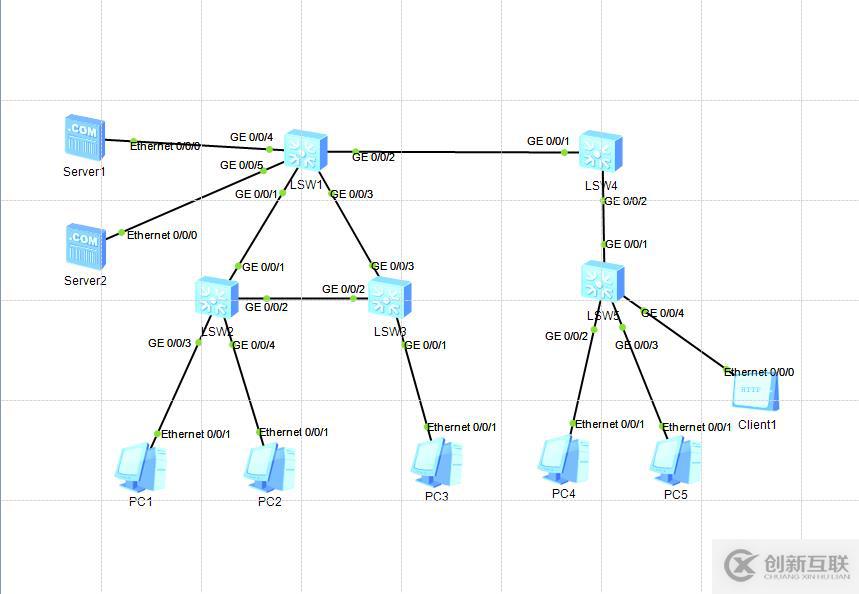

搭建拓?fù)?，最后保證全網互通，用客戶端“Client1"成功訪問”Server1“
其中：Server1為WEB服務器，server2為DNS服務器，屬于VLAN30，網關在SW4上，PC1和3屬于VLAN10，PC2屬于VLAN20，PC4，5和客戶端屬于VLAN40,SW1上有十網段和二十網段的網關，SW4上有三十網段和四十網段的網關。
Pc1：192.168.10.1
Pc2：192.168.20.1
Pc3：192.168.10.2
Pc4：192.168.40.1
Pc5：192.168.40.2
Client1：192.168.40.3
Server1：192.168.30.1
Server2：192.168.30.2
以上為各終端IP地址

創新互聯建站專注于企業營銷型網站、網站重做改版、黃梅網站定制設計、自適應品牌網站建設、html5、成都做商城網站、集團公司官網建設、外貿網站建設、高端網站制作、響應式網頁設計等建站業務，價格優惠性價比高，為黃梅等各大城市提供網站開發制作服務。

---

SW2：
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]
[Huawei]vlan 10
[Huawei-vlan10]
[Huawei-vlan10]vlan 20
[Huawei-vlan20]
[Huawei-vlan20]vlan 30
[Huawei-vlan30]
[Huawei-vlan30]
[Huawei-vlan30]vlan 40
[Huawei-vlan40]
[Huawei-vlan40]q
[Huawei]int g 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 10
[Huawei-GigabitEthernet0/0/3]q
[Huawei]int g 0/0/4
[Huawei-GigabitEthernet0/0/4]port link-type access
[Huawei-GigabitEthernet0/0/4]port default vlan 20
[Huawei-GigabitEthernet0/0/4]q
[Huawei]int g 0/0/2
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int g 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/1]q
[Huawei]
SW3：
The device is running!

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 10
[Huawei-vlan10]vlan 20
[Huawei-vlan20]vlan 30
[Huawei-vlan30]vlan 40
[Huawei-vlan40]q
[Huawei]int g 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 10
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/2]display this
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
return
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int g 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan all
SW1：
The device is running!

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 10
[Huawei-vlan10]vlan 20
[Huawei-vlan20]vlan 30
[Huawei-vlan30]vlan 40
[Huawei-vlan40]q
[Huawei]
[Huawei]int g 0/0/1
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/1]display this
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
return
[Huawei-GigabitEthernet0/0/1]q
[Huawei]
[Huawei]int GigabitEthernet 0/0/3
[Huawei-GigabitEthernet0/0/3]
[Huawei-GigabitEthernet0/0/3]port link-type trunk
[Huawei-GigabitEthernet0/0/3]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/3]
[Huawei-GigabitEthernet0/0/3]q
[Huawei]
[Huawei]int g 0/0/4
[Huawei-GigabitEthernet0/0/4]port link-type access
[Huawei-GigabitEthernet0/0/4]port default vlan 30
[Huawei-GigabitEthernet0/0/4]q
[Huawei]
[Huawei]
[Huawei]int g 0/0/5
[Huawei-GigabitEthernet0/0/5]port link-type access
[Huawei-GigabitEthernet0/0/5]port default vlan 30
[Huawei-GigabitEthernet0/0/5]
[Huawei-GigabitEthernet0/0/5]q
[Huawei]
[Huawei]
[Huawei]int g 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/2]display this
#
interface GigabitEthernet0/0/2
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
return
[Huawei]
[Huawei]int vlan 10
[Huawei-Vlanif10]
[Huawei-Vlanif10]ip add 192.168.10.254 255.255.255.0
[Huawei-Vlanif10]
[Huawei-Vlanif10]q
[Huawei]
[Huawei]int vlan 20
[Huawei-Vlanif20]ip add 192.168.20.254 255.255.255.0
[Huawei-Vlanif20]
[Huawei-Vlanif20]q
[Huawei]
[Huawei]int vlan 50
[Huawei-Vlanif50]ip add 192.168.50.1 255.255.255.0
[Huawei-Vlanif50]q
[Huawei]
[Huawei]
[Huawei]rip
[Huawei-rip-1]version 2
[Huawei-rip-1]network 192.168.10.0
[Huawei-rip-1]network 192.168.20.0
[Huawei-rip-1]network 192.168.50.0
[Huawei-rip-1]
[Huawei-rip-1]
[Huawei-rip-1]
[Huawei-rip-1]q
[Huawei]
SW5：
[Huawei]int g 0/0/2
[Huawei-GigabitEthernet0/0/2]display this
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 40
#
return
[Huawei-GigabitEthernet0/0/2]q
[Huawei]
[Huawei]
[Huawei]int g 0/0/3
[Huawei-GigabitEthernet0/0/3]
[Huawei-GigabitEthernet0/0/3]
[Huawei-GigabitEthernet0/0/3]display this
#
interface GigabitEthernet0/0/3
port link-type access
port default vlan 40
#
return
[Huawei-GigabitEthernet0/0/3]q
[Huawei]
[Huawei]
[Huawei]int g 0/0/4
[Huawei-GigabitEthernet0/0/4]
[Huawei-GigabitEthernet0/0/4]display this
#
interface GigabitEthernet0/0/4
port link-type access
port default vlan 40
#
return
[Huawei-GigabitEthernet0/0/4]q
[Huawei]
[Huawei]
[Huawei]
創建VLAN 并將端口加入VLAN
[Huawei]
[Huawei]int g 0/0/1
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]
SW4:
The device is running!

<Huawei>SYS
Enter system view, return user view with Ctrl+Z.
[Huawei]vlan 10
[Huawei-vlan10]vlan 20
[Huawei-vlan20]vlan 30
[Huawei-vlan30]vlan 40
[Huawei-vlan40]vlan 50
[Huawei-vlan50]q
[Huawei]
[Huawei]
[Huawei]int g 0/0/2
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]
[Huawei-GigabitEthernet0/0/2]q
[Huawei]
[Huawei]int g 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
[Huawei-GigabitEthernet0/0/1]q
[Huawei]
[Huawei]
[Huawei]int vlan 30
[Huawei-Vlanif30]
[Huawei-Vlanif30]ip add 192.168.30.254 255.255.255.0
[Huawei-Vlanif30]
[Huawei-Vlanif30]q
[Huawei]
[Huawei]interface vlan 40
[Huawei-Vlanif40]
[Huawei-Vlanif40]ip add 192.168.40.254 255.255.255.0
[Huawei-Vlanif40]
[Huawei-Vlanif40]q
[Huawei]
[Huawei]int vlan 50
[Huawei-Vlanif50]
[Huawei-Vlanif50]ip add 192.168.50.2 255.255.255.0
[Huawei-Vlanif50]q
[Huawei]
[Huawei]rip
[Huawei-rip-1]version 2
[Huawei-rip-1]network 192.168.30.0
[Huawei-rip-1]network 192.168.40.0
[Huawei-rip-1]network 192.168.50.0
[Huawei-rip-1]

---

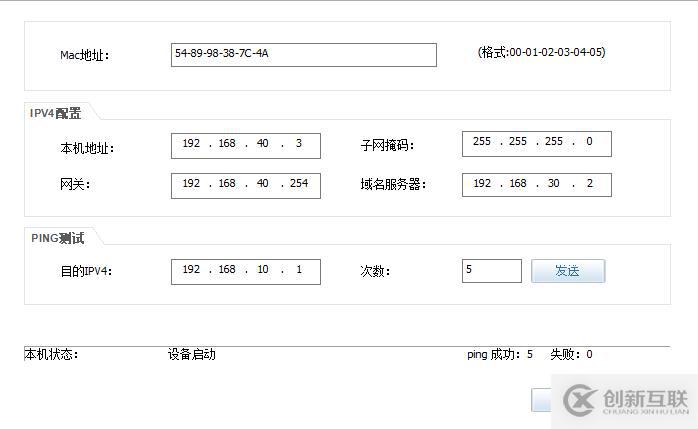

這張圖是客戶端配置界面

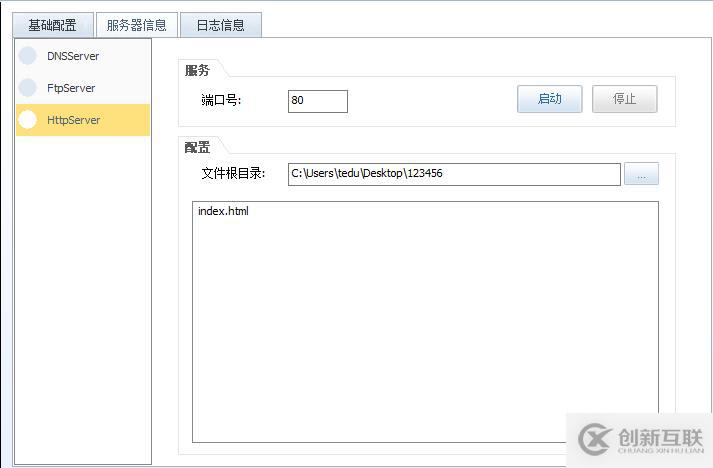

上圖為WEB服務器，也就是server1的WEB配置界面，html文件格式我會放在最下

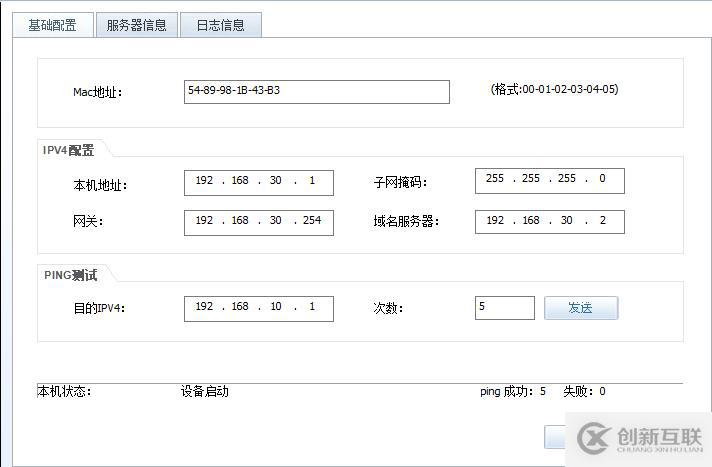

上圖為server1的配置界面

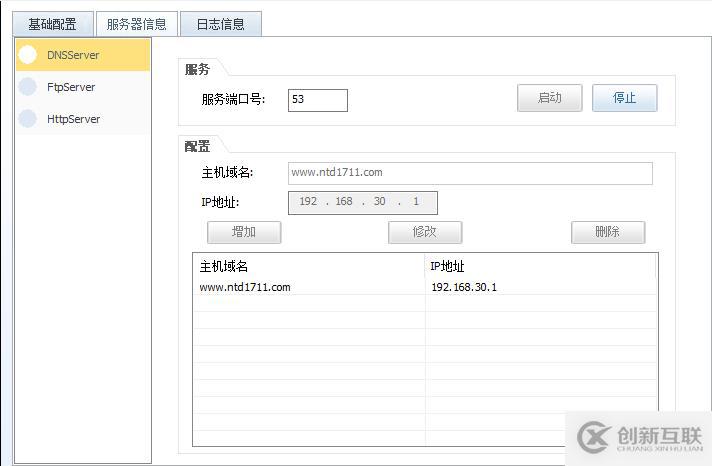

上圖為DNS服務器，也就是server2的DNS配置界面

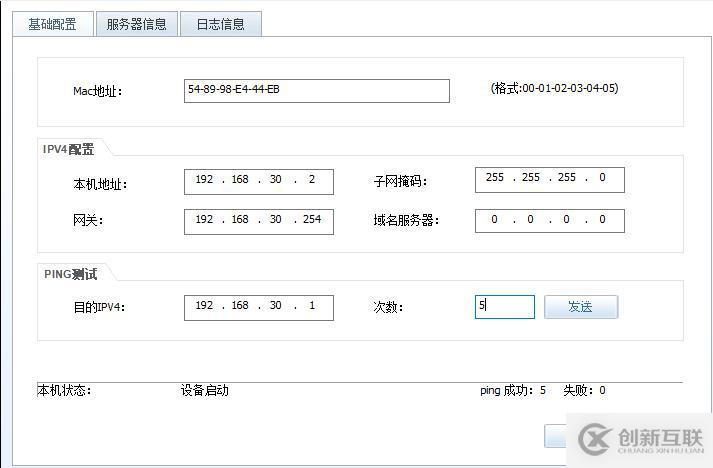

上圖為server2的配置界面

---

全部配置完畢，結果驗證成功。

以下為index.html文件格式

<html>
<head>
<title>wodegerenzhuye</title>
</head>
<body>huanyingfangwen
</body>
</html>
